Name：TWT-Induction motor

    Specification: Single phase IK induction motor     Three phase IK induction motor

                  Horsepower: 6W~180W                                                                   Horsepower: 25W~180W

                          Voltage: 100V~110V                                                                         Voltage: 200V~220V

                                         200V~220V                                                                                        380V~440V

Specialty:

Rated operation is continuous operation

Adopting E-class insulation

Single phase motors use capacitor type induction motors, resulting in high power and low noise

Three phase motors can use a three-phase power supply of 200-440V to meet various needs

■ High universality performance: can be widely used in various fields such as general household machines to production equipment automation

High reliability: The simple system structure can easily complete various operations. Induction motors and other power motors only need to be connected to capacitors and commercial power sources to operate. Simple, reliable, and long-lasting design leading the industry

■ Diverse models: The basic models include induction motors for continuous operation, reversible motors for forward and reverse transfer, as well as electromagnetic brake motors with load holding function, torque motors for pushing operation, and speed control function. The models are complete and welcome to purchase.

■ Low noise: The environment in which motors are used is constantly changing, and the requirements for low noise are becoming increasingly strict. Dongweiting motors/motors have the characteristics of low noise, high torque, small size, light weight, long service life, and maintenance free.

SINGLE PHASE 110V

Type		Output (W)	Starting torque (g-cm)	Rated torque (g-cm)	Rated current (A)	Capacitor (μF)	Appropriate reducer		Maximum allowable load
Round shaft	Gear shaft
2IK6A-A	2IK6GN-A	6	410	370	0.2	2.5	2GN□	2GN□K	25
3IK15A-A	3IK15GN-A	15	900	900	0.34	4	3GN□	3GN□K	50
4IK25A-A	4IK25GN-A	25	1400	1500	0.48	8	4GN□	4GN□K	80
5IK40A-A	5IK40GN-A	40	2400	2500	0.7	12/14	5GN□	5GN□K	100
5IK60A-AF	5IK60GN-AF	60	3600	3700	1.2	16	5GN□	5GN□K	100
	5IK60GU-AF	60	3600	3700	1.2	16		5GU□K	150
5IK90A-AF	5IK90GU-AF	90	4800	5700	1.7	25		5GU□K	200
5IK120A-AF	5IK120GU-AF	120	5200	6300	3.0	25/30		5GUCK	200

Note：Frequency (HZ)50/60，Polarization Number:(P)4，Revolution(r .p .m.)1450/1750，Rated Time:Continue

SINGLE PHASE 220V

Type		Output (W)	Starting torque (g-cm)	Rated torque (g-cm)	Rated current (A)	Capacitor (uF)	Appropriate reducer		Maximum allowable load
Round shaft	Gear shaft
2IK6A-C	2IK6GN-C	6	410	370	0.1	0.8	2GN□	2GNOK	25
3IK15A-C	3IK15GN-C	15	900	900	0.17	1.2	3GN□	3GN□K	50
4IK25A-C	4IK25GN-C	25	1400	1500	0.24	1.5	4GN□	4GNOK	80
5IK40A-C	5IK40GN-C	40	2400	2500	0.45	3	5GN□	5GN□K	100
5IK60A-CF	5IK60GN-CF	60	3600	3700	0.65	3.5	5GN□	5GN□K	100
	5IK6OGU-CF	60	3600	3700	0.65	3.5		5GUOK	150
5IK90A-CF	5IK90GU-CF	90	4800	5700	0.8	5		5GUOK	200
5IK120A-CF	5IK120GU-CF	120	5200	6300	0.9	6		5GU□K	200
5IK150A-CF	5IK150GU-CF	150	6100	9545	1.3	6/8		5GUOK	200
5IK180A-CF	5IK180GU-CF	180	7000	11315	1.9	8/10		5GUOK	200

  Note: Frequency(Hz) 50/60,Pole number:(P)4, Revolution (Rpm) 1450/1750,Rated time: Continue

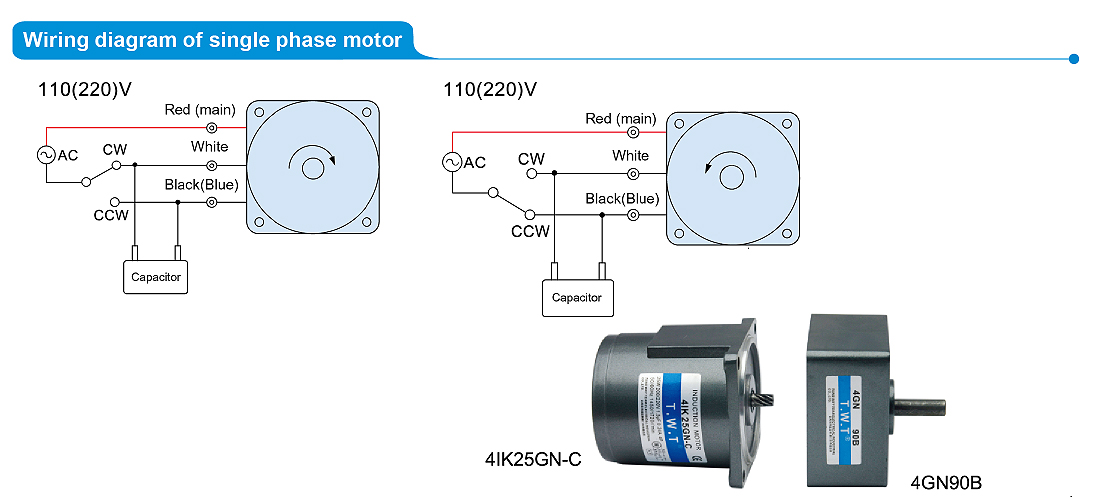

WIRING DIAGRAM OF SINGLE PHASE MOTOR

Three phase 220V

Type		Output (w)	Starting torque (g.cm)	Rated torque (g.cm)	Rated current (A)	Capacitor (uF)	Appropriate reducer		Maximum allowable load (kg.cm)
Round shaft	Gear shaft
4IK25A-S	4IK25GN-S	25	1500	1500	0.35		4GN□	4GN□K	80
5IK40A-S	5IK40GN-S	40	6500	2400	0.45	-	5GN□	5GN□K	100
5IK60A-SF	5IK60GN-SF	60	8100	3500	0.65		5GN□	5GN□K	100
	5IK60GU-SF	60	8100	3500	0.65			5GU□K	150
5IK90A-SF	5IK90GU-SF	90	12000	5500	0.68	-	-	5GU□K	200

Note:1.Frequency(Hz)50/60,Pole number:(P)4,Revolution(Rpm)1450/1750,Rated time:Continue

2.120w to 180w motor be customized

Three phase 220V/380V

Type		Output (w)	Starting torque	Rated torque (g.cm)	Rated current	Capacitor (uF)	Appropriate reducer		Maximum allowable load (kg.cm)
Round shaft	Gear shaft
4IK25A-Y	4IK25GN-Y	25	1500	1500	0.21		4GN□	4GN□K	80
5IK40A-Y	5IK40GN-Y	40	6500	2400	0.4	-	5GN□	5GN□K	100
SIK6OA-YF	5IK60GN-YF	60	8100	3500	0.4	-	5GN□	5GN□K	100
	5IK60GU-YF	60	8100	3500	0.4	-		5GU□K	150
5IK90A-YF	5IK90GU-YF	90	12000	5500	0.46			5GU□K	200

Note:1.Frequency(Hz)50/60, Pole number: (P) 4, Revolution (Rpm) 1450/1750, Rated time: Continue

2.120w to 180w motor be customized
